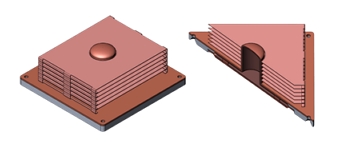

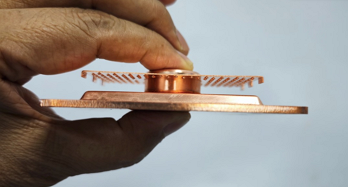

NeoGene Immersion Dissipator
NeoGene Immersion Dissipator
With the advancement of semiconductor technology and chip design capabilities, the computing power of the chip has been greatly improved, and the thermal design power of the single-chip is also required to increase from 300W to 500W, or even more than 1000W. NeoGene Immersion Dissipator provides a complete chip cooling solution, from 300W to 1,500W.
NeoGene Immersion Dissipator is the first and only product that integrates two phases (liquid phase and gas phase) and double circulation (internal circulation and external circulation). It has actually been applied to high-performance computing, such as CPU/GPU, data center and cloud computing and IGBT.
| Qmax: | 100W ~ 1,200W |
|---|---|
| Fin#: | 3 / 6 / 9 / 12 |
| Fin Dimension (L x W x H)mm): | 63 x 50 x (9 ~ 36) |
| Solutions: | CPU / GPU /AI / IGBT |
| Material: | CU : C1020 |
| Dimension(L x W x H mm)-A: | 75 x 75 x (19 ~ 46) |
| Dimension(L x W x H mm)-B: | 75 x 75 x (20 ~ 47) |
| Weight(g)-A: | 170 / 205 / 240 / 270 |
| Weight(g)-B: | 170 / 205 / 240 / 270 |
